gRpc最佳实践-Java

Java SpringBoot GRpc
编程技术
发布日期:   2023-03-27
文章字数:   1.8k
阅读次数:

介绍

gRpc是一种可以跨语言的Rpc框架，它可以跨语言的原因在于其接口定义文件的平台无关性。
这一点与Dubbo形成鲜明对比，Dubbbo的接口文件直接就是Java的接口类，进而在云原生时代限制了Dubbo的跨语言发展。

使用gRpc开发的主要步骤有：

  1. 定义proto接口文件，文件中约定了接口函数和入参出参的数据结构；
  2. 利用proto生成相应语言的接口代码，例如go，Java，python语言的代码等；
  3. 基于上述生产的代码进行编码，之后的服务端与客户端只需要约定好域名和端口即可完成调用。

例子

下面以Java语言为例，给出示例代码。

调用流程

编写接口定义文件 .proto

syntax = "proto3";

package hello;

option java_multiple_files = true;

option java_package = "cn.liyongwei.api.hello";

service HelloService {
  rpc sayHello(HelloRequest) returns (HelloReply) {}
}

message HelloRequest {
  string name = 1;
}

message HelloReply {
  string message =1;
}

生成Java接口类

  1. 新建一个maven项目;
  2. 在src/main下新建一个proto文件夹，然后把上述的接口定义保存为hello.proto文件;
  3. 在pom文件引入grpc相关依赖，包括生成Java接口类的maven插件;
    <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.liyongwei.grpc</groupId>
    <artifactId>demo-api</artifactId>
    <version>2.0</version>

    <properties>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <protobuf.version>3.21.7</protobuf.version>
        <grpc.version>1.53.0</grpc.version><!-- CURRENT_GRPC_VERSION -->
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-bom</artifactId>
                <version>${grpc.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-netty-shaded</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-protobuf</artifactId>
        </dependency>
        <dependency>
            <groupId>io.grpc</groupId>
            <artifactId>grpc-stub</artifactId>
        </dependency>
        <dependency>
            <groupId>com.google.protobuf</groupId>
            <artifactId>protobuf-java-util</artifactId>
            <version>${protobuf.version}</version>
        </dependency>
    </dependencies>

    <build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.4.1.Final</version>
            </extension>
        </extensions>
        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.5.0</version>
                <configuration>
                    <protocArtifact>com.google.protobuf:protoc:3.3.0:exe:${os.detected.classifier}</protocArtifact>
                    <pluginId>grpc-java</pluginId>
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.4.0:exe:${os.detected.classifier}</pluginArtifact>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

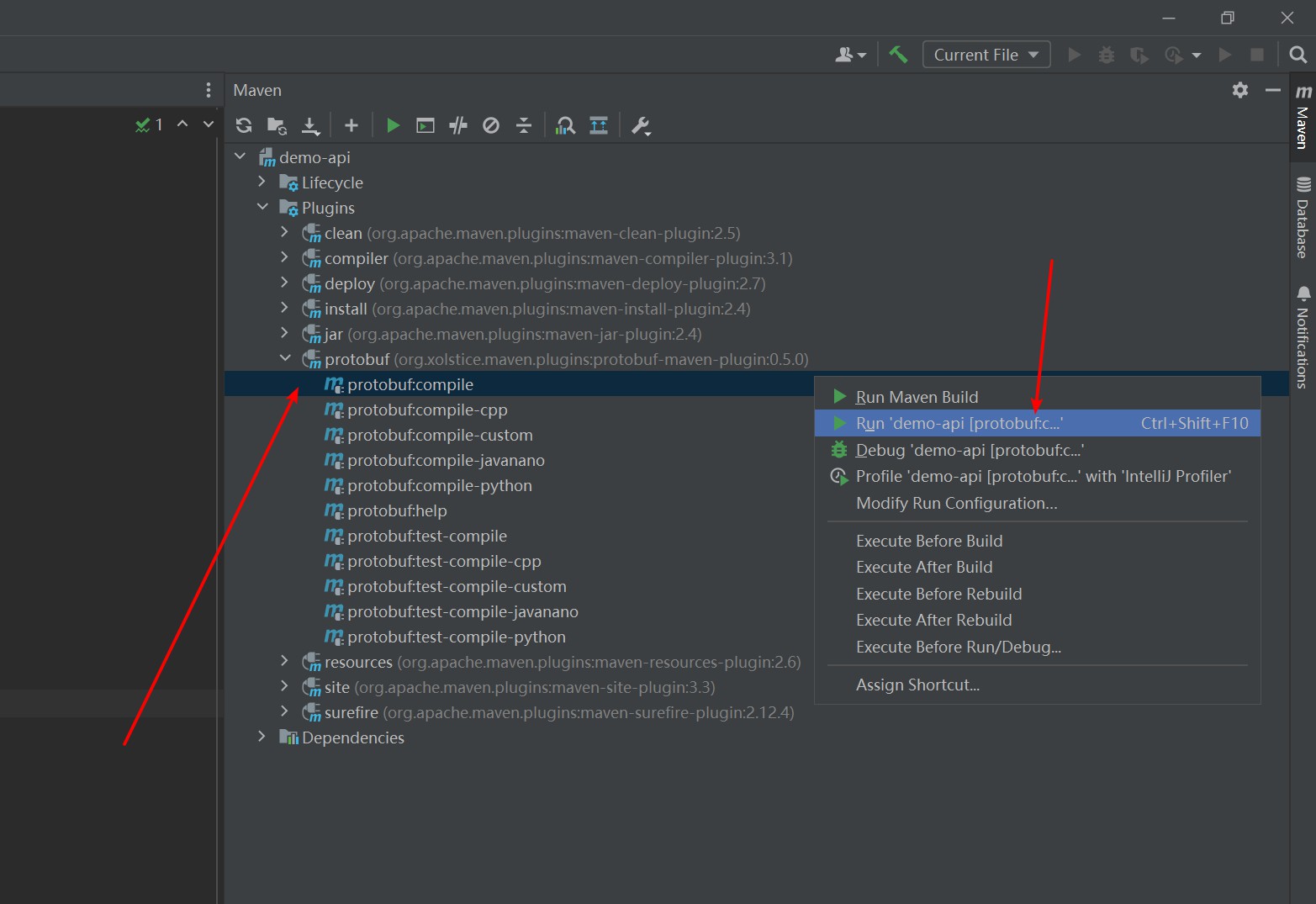

  4. 在maven的插件中找到proto，右键点击compile，选择第二项进行编译。编译成功后，在target/generated-class中可以找到接口相关的类;
    调用流程
  5. 点击maven/deploy把这个接口项目发布到自己电脑的maven仓库中，就可以在其他项目中使用了。

服务端类

  1. 新建一个maven项目，在pom文件中引入如下依赖;
    <dependency>
    <groupId>cn.liyongwei.grpc</groupId>
    <artifactId>demo-api</artifactId>
    <version>2.0</version>
</dependency>
  2. 实现接口类逻辑
    package cn.liyongwei.grpc.service;

import cn.liyongwei.api.hello.HelloReply;
import cn.liyongwei.api.hello.HelloRequest;
import cn.liyongwei.api.hello.HelloServiceGrpc;
import io.grpc.stub.StreamObserver;

import java.net.InetAddress;
import java.net.UnknownHostException;

@GrpcService(name = "helloService")
public class HelloService extends HelloServiceGrpc.HelloServiceImplBase {

    @Override
    public void sayHello(HelloRequest request, StreamObserver<HelloReply> responseObserver) {
        String hostname = null;
        try {
            hostname = InetAddress.getLocalHost().getHostName();
        } catch (UnknownHostException e) {
            e.printStackTrace();
        }
        HelloReply reply = HelloReply.newBuilder().setMessage("hello, " + request.getName() + "! from " + hostname).build();
        responseObserver.onNext(reply);
        responseObserver.onCompleted();
    }
}
  3. 定义注解，主要作用就是实现自动载入服务
    package cn.liyongwei.grpc.service;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
public @interface GrpcService {
    String name() default "";
}
  4. 启动类
    package cn.liyongwei.grpc.service;

import io.grpc.BindableService;
import io.grpc.Grpc;
import io.grpc.InsecureServerCredentials;
import io.grpc.Server;
import io.grpc.ServerServiceDefinition;

import java.io.File;
import java.io.IOException;
import java.lang.reflect.InvocationTargetException;
import java.net.URL;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.TimeUnit;
import java.util.logging.Logger;

public class Application {

    private static final Logger logger = Logger.getLogger(Application.class.getName());

    private Server server;

    public static void main(String[] args) throws InterruptedException, IOException {
        final Application application = new Application();
        application.start();
        application.blockUntilShutdown();
    }

    private void start() throws IOException {
        List<ServerServiceDefinition> gRpcServices = scanServices();
        int port = 50051;
        server = Grpc.newServerBuilderForPort(port, InsecureServerCredentials.create())
                .addServices(gRpcServices)
                .build()
                .start();
        logger.info("Server started, listening on " + port);

        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                // Use stderr here since the logger may have been reset by its JVM shutdown hook.
                System.err.println("*** shutting down gRPC server since JVM is shutting down");
                try {
                    Application.this.stop();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                System.err.println("*** server shut down");
            }
        });
    }

    private void stop() throws InterruptedException {
        if (server != null) {
            server.shutdown().awaitTermination(30, TimeUnit.SECONDS);
        }
    }

    private void blockUntilShutdown() throws InterruptedException {
        if (server != null) {
            server.awaitTermination();
        }
    }

    private List<ServerServiceDefinition> scanServices() {
        List<ServerServiceDefinition> gRpcServices = new ArrayList<>();
        String path = this.getClass().getPackage().getName();
        path = path.replace(".", "/");
        ClassLoader classLoader = this.getClass().getClassLoader();
        URL resources = classLoader.getResource(path);
        File currentDirectory = new File(resources.getFile());
        if(currentDirectory.isDirectory()) {
            File[] files = currentDirectory.listFiles();
            for(File f : files) {
                String fileName = f.getAbsolutePath();
                String className = fileName.substring(fileName.indexOf("cn"), fileName.indexOf(".class"));
                className = className.replace("\\", ".");
                try {
                    Class<?> clazz = classLoader.loadClass(className);
                    if(clazz.isAnnotationPresent(GrpcService.class)) {
                        BindableService instance = (BindableService) clazz.getDeclaredConstructor().newInstance();
                        gRpcServices.add(instance.bindService());
                    }
                } catch (ClassNotFoundException e) {

                } catch (InvocationTargetException e) {
                    throw new RuntimeException(e);
                } catch (InstantiationException e) {
                    throw new RuntimeException(e);
                } catch (IllegalAccessException e) {
                    throw new RuntimeException(e);
                } catch (NoSuchMethodException e) {
                    throw new RuntimeException(e);
                }
            }
        }
        return gRpcServices;
    }
}
  5. 运行main方法，开始监听本地50051端口

客户端类

  1. 创建一个SpringBoot项目，引入web和上述的接口类
    <dependency>
    <groupId>cn.liyongwei.grpc</groupId>
    <artifactId>demo-api</artifactId>
    <version>2.0</version>
</dependency>

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <version>2.7.8-SNAPSHOT</version>
</dependency>
  2. 配置类
    package cn.liyongwei.grpc.client.config;

import cn.liyongwei.api.hello.HelloServiceGrpc;
import io.grpc.Grpc;
import io.grpc.InsecureChannelCredentials;
import io.grpc.ManagedChannel;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;

import java.util.concurrent.TimeUnit;

/**
 * gRPC Client的配置——启动、建立channel、获取stub、关闭等
 * 需要注册为Spring Bean
 *
 * @author 江文
 * @date 2020/4/12 3:27 下午
 */
@Component
public class GrpcClientConfiguration {
    private ManagedChannel channel;

    public GrpcClientConfiguration() {
        start();
        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                // Use stderr here since the logger may have been reset by its JVM shutdown hook.
                System.err.println("*** shutting down gRPC server since JVM is shutting down");
                try {
                    GrpcClientConfiguration.this.stop();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                System.err.println("*** server shut down");
            }
        });
    }

    public void start() {
        String target = "localhost:50051";
        // 开启channel
        channel = Grpc.newChannelBuilder(target, InsecureChannelCredentials.create())
                .build();
    }

    public void stop() throws InterruptedException {
        channel.shutdown().awaitTermination(1, TimeUnit.SECONDS);
    }

    @Bean(name = "helloService")
    public HelloServiceGrpc.HelloServiceBlockingStub getHelloService() {
        // 通过channel获取到服务端的stub
        return HelloServiceGrpc.newBlockingStub(channel);
    }
}
  3. Controller类
    package cn.liyongwei.grpc.client.controller;

import cn.liyongwei.api.hello.HelloReply;
import cn.liyongwei.api.hello.HelloRequest;
import cn.liyongwei.api.hello.HelloServiceGrpc;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
public class GRpcController {

    @Resource(name = "helloService")
    private HelloServiceGrpc.HelloServiceBlockingStub helloService;

    @GetMapping("/hello/{name}")
    public String sayHello(@PathVariable String name) {
        HelloReply helloReply = helloService.sayHello(HelloRequest.newBuilder().setName(name).build());
        return helloReply.getMessage();
    }
}
  4. 启动项目，通过浏览器调用一下试试吧！
